Electro Meets Mechanical


Software bridges the divide between electrical and mechanical, allowing you to automatically create accurate, fully populated models from ECAD data.

Printed circuit board (PCB) design has really evolved in the last 25 years. In the early days, PCB designers used sheets of Mylar, colored pencils, and crepe tape to lay out components and circuitry. With the advent of PCB design software, those days are long gone. One similarity to days gone by is the gap between the electronics designer and the mechanical or packaging designer. Integrating PCBs into a mechanical design often means re-modeling circuit boards from scratch, leading to possible errors and costly rework. CircuitWorks bridges the divide between electrical and mechanical, allowing you to automatically create accurate, fully populated models from electrical computer-aided design (ECAD) data. CircuitWorks was developed by Priware, a company recently acquired by SolidWorks. CircuitWorks is now available as part of the SolidWorks Office Premium package.

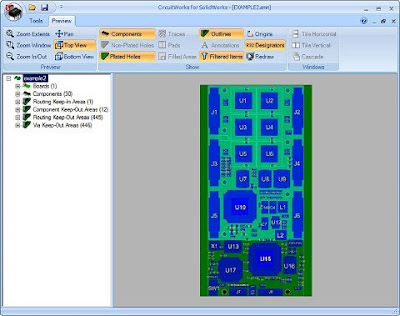

CircuitWorks Stand-AloneAs a stand-alone product, CircuitWorks is an intuitive tool for viewing, editing, and translating files created by ECAD systems. CircuitWorks reads and writes industry standard IDF (v2, 3, and 4) and PADS (.ASC). CircuitWorks can display the board outline, components, holes (plated and non-plated), keep-out and keep-in areas, as well as notes from the ECAD data. With IDF v4, even pads, filled areas, and traces are shown.
Once the ECAD data is open in CircuitWorks, changes to the data can be made. Components may be moved, filtered out, and features such as reference designators can be edited if necessary. Changes made to the imported file can be saved out in the IDF format for use in the original PCB design software.
